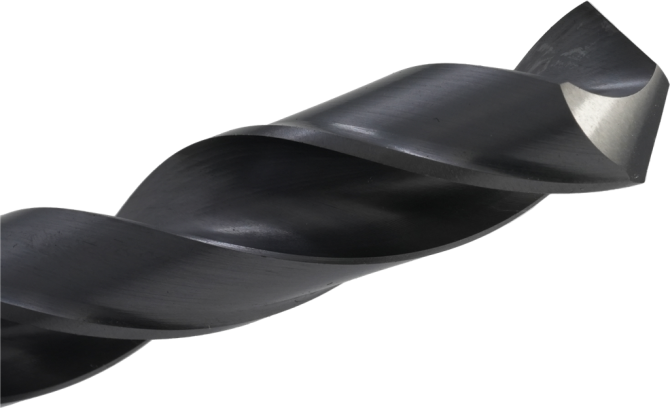

118° General Purpose Jobber Length Drill

Add to Favorites

View Larger

General

Brand NameChicago-Latrobe
Style #150
SetNo

Specifications

Surface ConditionSteam Oxide
MaterialHSS
Flute TypeSpiral
Hand of SpiralRight
Hand of CutRight
Drill StyleJobber Drill
Drill ConstructionGeneral Purpose
Point StyleRadial
Point Angle118°

Shank

Shank ConfigurationStraight

Literature:

GFI SDS 01 - HSS Product - March 2025.pdf

Warnings:

This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.p65warnings.ca.gov

Category: Jobber Drills
Brand: Chicago-Latrobe

Options

SKU:	Size (in)	Size (W/L)	Size (mm)	Dia (in)	Dia (mm)	LOF (in)	LOF (mm)	OAL (in)	OAL (mm)	Pack Qty	Min Qty
44150	-	80	-	0.0135	0.34	0.1250	3.17	0.7500	19.05	12	12
44149	-	79	-	0.0145	0.37	0.1250	3.17	0.7500	19.05	12	12
44001	1/64	-	-	0.0156	0.40	0.1875	4.76	0.7500	19.05	12	12
44148	-	78	-	0.0160	0.41	0.1875	4.76	0.8750	22.22	12	12
44147	-	77	-	0.0180	0.46	0.1875	4.76	0.8750	22.22	12	12
44146	-	76	-	0.0200	0.51	0.1875	4.76	0.8750	22.22	12	12
44145	-	75	-	0.0210	0.53	0.2500	6.35	1.0000	25.40	12	12
44144	-	74	-	0.0225	0.57	0.2500	6.35	1.0000	25.40	12	12
44143	-	73	-	0.0240	0.61	0.3125	7.94	1.1250	28.57	12	12
44142	-	72	-	0.0250	0.64	0.3125	7.94	1.1250	28.57	12	12
44141	-	71	-	0.0260	0.66	0.3750	9.52	1.2500	31.75	12	12
44140	-	70	-	0.0280	0.71	0.3750	9.52	1.2500	31.75	12	12
44139	-	69	-	0.0292	0.74	0.5000	12.70	1.3750	34.92	12	12
44138	-	68	-	0.0310	0.79	0.5000	12.70	1.3750	34.92	12	12
44002	1/32	-	-	0.0313	0.80	0.5000	12.70	1.3750	34.92	12	12
44137	-	67	-	0.0320	0.81	0.5000	12.70	1.3750	34.92	12	12
44136	-	66	-	0.0330	0.84	0.5000	12.70	1.3750	34.92	12	12
44135	-	65	-	0.0350	0.89	0.6250	15.88	1.5000	38.10	12	12
44134	-	64	-	0.0360	0.91	0.6250	15.88	1.5000	38.10	12	12
44133	-	63	-	0.0370	0.94	0.6250	15.88	1.5000	38.10	12	12
44132	-	62	-	0.0380	0.97	0.6250	15.88	1.5000	38.10	12	12
44131	-	61	-	0.0390	0.99	0.6875	17.46	1.6250	41.27	12	12
47223	-	-	1.00	0.0394	1.00	0.4724	12.00	1.3386	34.00	12	12
44130	-	60	-	0.0400	1.02	0.6875	17.46	1.6250	41.27	12	12
44129	-	59	-	0.0410	1.04	0.6875	17.46	1.6250	41.27	12	12
47224	-	-	1.05	0.0413	1.05	0.4724	12.00	1.3386	34.00	12	12
44128	-	58	-	0.0420	1.07	0.6875	17.46	1.6250	41.27	12	12
44127	-	57	-	0.0430	1.09	0.7500	19.05	1.7500	44.45	12	12
47225	-	-	1.10	0.0433	1.10	0.5512	14.00	1.4173	36.00	12	12
47226	-	-	1.15	0.0453	1.15	0.5512	14.00	1.4173	36.00	12	12
44126	-	56	-	0.0465	1.18	0.7500	19.05	1.7500	44.45	12	12
44003	3/64	-	-	0.0469	1.19	0.7500	19.05	1.7500	44.45	12	12
47227	-	-	1.20	0.0472	1.20	0.6299	16.00	1.4961	38.00	12	12
47228	-	-	1.25	0.0492	1.25	0.6299	16.00	1.4961	38.00	12	12
47229	-	-	1.30	0.0512	1.30	0.6299	16.00	1.4961	38.00	12	12
44125	-	55	-	0.0520	1.32	0.8750	22.22	1.8750	47.63	12	12
47230	-	-	1.35	0.0531	1.35	0.7087	18.00	1.5748	40.00	12	12
44124	-	54	-	0.0550	1.40	0.8750	22.22	1.8750	47.63	12	12
47231	-	-	1.40	0.0551	1.40	0.7087	18.00	1.5748	40.00	12	12
47232	-	-	1.45	0.0571	1.45	0.7087	18.00	1.5748	40.00	12	12
47233	-	-	1.50	0.0591	1.50	0.7087	18.00	1.5748	40.00	12	12
44123	-	53	-	0.0595	1.51	0.8750	22.22	1.8750	47.63	12	12
47234	-	-	1.55	0.0610	1.55	0.7874	20.00	1.6929	43.00	12	12
44004	1/16	-	-	0.0625	1.59	0.8750	22.22	1.8750	47.63	12	12
47235	-	-	1.60	0.0630	1.60	0.7874	20.00	1.6929	43.00	12	12
44122	-	52	-	0.0635	1.61	0.8750	22.22	1.8750	47.63	12	12
47236	-	-	1.65	0.0650	1.65	0.7874	20.00	1.6929	43.00	12	12
47237	-	-	1.70	0.0669	1.70	0.7874	20.00	1.6929	43.00	12	12
44121	-	51	-	0.0670	1.70	1.0000	25.40	2.0000	50.80	12	12
47238	-	-	1.75	0.0689	1.75	0.8661	22.00	1.8110	46.00	12	12
44120	-	50	-	0.0700	1.78	1.0000	25.40	2.0000	50.80	12	12
47239	-	-	1.80	0.0709	1.80	0.8661	22.00	1.8110	46.00	12	12
47240	-	-	1.85	0.0728	1.85	0.8661	22.00	1.8110	46.00	12	12
44119	-	49	-	0.0730	1.85	1.0000	25.40	2.0000	50.80	12	12
47241	-	-	1.90	0.0748	1.90	0.8661	22.00	1.8110	46.00	12	12
44118	-	48	-	0.0760	1.93	1.0000	25.40	2.0000	50.80	12	12
47242	-	-	1.95	0.0768	1.95	0.9449	24.00	1.9291	49.00	12	12
44005	5/64	-	-	0.0781	1.98	1.0000	25.40	2.0000	50.80	12	12
44117	-	47	-	0.0785	1.99	1.0000	25.40	2.0000	50.80	12	12
47243	-	-	2.00	0.0787	2.00	0.9449	24.00	1.9291	49.00	12	12
47244	-	-	2.05	0.0807	2.05	0.9449	24.00	1.9291	49.00	12	12
44116	-	46	-	0.0810	2.06	1.1250	28.57	2.1250	53.97	12	12
44115	-	45	-	0.0820	2.08	1.1250	28.57	2.1250	53.97	12	12
47245	-	-	2.10	0.0827	2.10	0.9449	24.00	1.9291	49.00	12	12
47246	-	-	2.15	0.0846	2.15	1.0630	27.00	2.0866	53.00	12	12
44114	-	44	-	0.0860	2.18	1.1250	28.57	2.1250	53.97	12	12
47247	-	-	2.20	0.0866	2.20	1.0630	27.00	2.0866	53.00	12	12
47248	-	-	2.25	0.0886	2.25	1.0630	27.00	2.0866	53.00	12	12
44113	-	43	-	0.0890	2.26	1.2500	31.75	2.2500	57.15	12	12
47249	-	-	2.30	0.0906	2.30	1.0630	27.00	2.0866	53.00	12	12
47250	-	-	2.35	0.0925	2.35	1.0630	27.00	2.0866	53.00	12	12
44112	-	42	-	0.0935	2.37	1.2500	31.75	2.2500	57.15	12	12
44006	3/32	-	-	0.0938	2.38	1.2500	31.75	2.2500	57.15	12	12
47251	-	-	2.40	0.0945	2.40	1.1811	30.00	2.2441	57.00	12	12
44111	-	41	-	0.0960	2.44	1.3750	34.92	2.3750	60.32	12	12
47252	-	-	2.45	0.0965	2.45	1.1811	30.00	2.2441	57.00	12	12
44110	-	40	-	0.0980	2.49	1.3750	34.92	2.3750	60.32	12	12
47253	-	-	2.50	0.0984	2.50	1.1811	30.00	2.2441	57.00	12	12
44109	-	39	-	0.0995	2.53	1.3750	34.92	2.3750	60.32	12	12
44108	-	38	-	0.1015	2.58	1.4375	36.51	2.5000	63.50	12	12
47254	-	-	2.60	0.1024	2.60	1.1811	30.00	2.2441	57.00	12	12
44107	-	37	-	0.1040	2.64	1.4375	36.51	2.5000	63.50	12	12
47255	-	-	2.70	0.1063	2.70	1.2992	33.00	2.4016	61.00	12	12
44106	-	36	-	0.1065	2.71	1.4375	36.51	2.5000	63.50	12	12
44007	7/64	-	-	0.1094	2.78	1.5000	38.10	2.6250	66.67	12	12
44105	-	35	-	0.1100	2.79	1.5000	38.10	2.6250	66.67	12	12
47257	-	-	2.80	0.1102	2.80	1.2992	33.00	2.4016	61.00	12	12
44104	-	34	-	0.1110	2.82	1.5000	38.10	2.6250	66.67	12	12
44103	-	33	-	0.1130	2.87	1.5000	38.10	2.6250	66.67	12	12
47258	-	-	2.90	0.1142	2.90	1.2992	33.00	2.4016	61.00	12	12
44102	-	32	-	0.1160	2.95	1.6250	41.27	2.7500	69.85	12	12
47259	-	-	3.00	0.1181	3.00	1.2992	33.00	2.4016	61.00	12	12
44101	-	31	-	0.1200	3.05	1.6250	41.27	2.7500	69.85	12	12
47260	-	-	3.10	0.1220	3.10	1.4173	36.00	2.5591	65.00	12	12
44008	1/8	-	-	0.1250	3.18	1.6250	41.27	2.7500	69.85	12	12
47261	-	-	3.20	0.1260	3.20	1.4173	36.00	2.5591	65.00	12	12
44100	-	30	-	0.1285	3.26	1.6250	41.27	2.7500	69.85	12	12
47263	-	-	3.30	0.1299	3.30	1.4173	36.00	2.5591	65.00	12	12
47264	-	-	3.40	0.1339	3.40	1.5354	39.00	2.7559	70.00	12	12
44099	-	29	-	0.1360	3.45	1.7500	44.45	2.8750	73.02	12	12
47265	-	-	3.50	0.1378	3.50	1.5354	39.00	2.7559	70.00	12	12
44098	-	28	-	0.1405	3.57	1.7500	44.45	2.8750	73.02	12	12
44009	9/64	-	-	0.1406	3.57	1.7500	44.45	2.8750	73.02	12	12
47266	-	-	3.60	0.1417	3.60	1.5354	39.00	2.7559	70.00	12	12
44097	-	27	-	0.1440	3.66	1.8750	47.63	3.0000	76.20	12	12
47267	-	-	3.70	0.1457	3.70	1.5354	39.00	2.7559	70.00	12	12
44096	-	26	-	0.1470	3.73	1.8750	47.63	3.0000	76.20	12	12
44095	-	25	-	0.1495	3.80	1.8750	47.63	3.0000	76.20	12	12
47269	-	-	3.80	0.1496	3.80	1.6929	43.00	2.9528	75.00	12	12
44094	-	24	-	0.1520	3.86	2.0000	50.80	3.1250	79.38	12	12
47270	-	-	3.90	0.1535	3.90	1.6929	43.00	2.9528	75.00	12	12
44093	-	23	-	0.1540	3.91	2.0000	50.80	3.1250	79.38	12	12
44010	5/32	-	-	0.1563	3.97	2.0000	50.80	3.1250	79.38	12	12
44092	-	22	-	0.1570	3.99	2.0000	50.80	3.1250	79.38	12	12
47271	-	-	4.00	0.1575	4.00	1.6929	43.00	2.9528	75.00	12	12
44091	-	21	-	0.1590	4.04	2.1250	53.97	3.2500	82.55	12	12
44090	-	20	-	0.1610	4.09	2.1250	53.97	3.2500	82.55	12	12
47272	-	-	4.10	0.1614	4.10	1.6929	43.00	2.9528	75.00	12	12
47273	-	-	4.20	0.1654	4.20	1.6929	43.00	2.9528	75.00	12	12
44089	-	19	-	0.1660	4.22	2.1250	53.97	3.2500	82.55	12	12
47275	-	-	4.30	0.1693	4.30	1.8504	47.00	3.1496	80.00	12	12
44088	-	18	-	0.1695	4.31	2.1250	53.97	3.2500	82.55	12	12
44011	11/64	-	-	0.1719	4.37	2.1250	53.97	3.2500	82.55	12	12
44087	-	17	-	0.1730	4.39	2.1875	55.56	3.3750	85.72	12	12
47276	-	-	4.40	0.1732	4.40	1.8504	47.00	3.1496	80.00	12	12
44086	-	16	-	0.1770	4.50	2.1875	55.56	3.3750	85.72	12	12
47277	-	-	4.50	0.1772	4.50	1.8504	47.00	3.1496	80.00	12	12
44085	-	15	-	0.1800	4.57	2.1875	55.56	3.3750	85.72	12	12
47278	-	-	4.60	0.1811	4.60	1.8504	47.00	3.1496	80.00	12	12
44084	-	14	-	0.1820	4.62	2.1875	55.56	3.3750	85.72	12	12
47279	-	13	4.70	0.1850	4.70	1.8504	47.00	3.1496	80.00	12	12
44083	-	13	4.70	0.1850	4.70	2.3125	58.74	3.5000	88.90	12	12
44012	3/16	-	-	0.1875	4.76	2.3125	58.74	3.5000	88.90	12	12
47281	-	12	4.80	0.1890	4.80	2.0472	52.00	3.3858	86.00	12	12
44082	-	12	4.80	0.1890	4.80	2.3125	58.74	3.5000	88.90	12	12
44081	-	11	-	0.1910	4.85	2.3125	58.74	3.5000	88.90	12	12
47282	-	-	4.90	0.1929	4.90	2.0472	52.00	3.3858	86.00	12	12
44080	-	10	-	0.1935	4.91	2.4375	61.91	3.6250	92.07	12	12
44079	-	9	-	0.1960	4.98	2.4375	61.91	3.6250	92.07	12	12
47283	-	-	5.00	0.1969	5.00	2.0472	52.00	3.3858	86.00	12	12
44078	-	8	-	0.1990	5.05	2.4375	61.91	3.6250	92.07	12	12
47284	-	-	5.10	0.2008	5.10	2.0472	52.00	3.3858	86.00	12	12
44077	-	7	-	0.2010	5.11	2.4375	61.91	3.6250	92.07	12	12
44013	13/64	-	-	0.2031	5.16	2.4375	61.91	3.6250	92.07	12	12
44076	-	6	-	0.2040	5.18	2.5000	63.50	3.7500	95.25	12	12
47285	-	-	5.20	0.2047	5.20	2.0472	52.00	3.3858	86.00	12	12
44075	-	5	-	0.2055	5.22	2.5000	63.50	3.7500	95.25	12	12
47287	-	-	5.30	0.2087	5.30	2.0472	52.00	3.3858	86.00	12	12
44074	-	4	-	0.2090	5.31	2.5000	63.50	3.7500	95.25	12	12
47288	-	-	5.40	0.2126	5.40	2.2441	57.00	3.6614	93.00	12	12
44073	-	3	-	0.2130	5.41	2.5000	63.50	3.7500	95.25	12	12
47289	-	-	5.50	0.2165	5.50	2.2441	57.00	3.6614	93.00	12	12
44014	7/32	-	-	0.2188	5.56	2.5000	63.50	3.7500	95.25	12	12
47290	-	-	5.60	0.2205	5.60	2.2441	57.00	3.6614	93.00	12	12
44072	-	2	-	0.2210	5.61	2.6250	66.67	3.8750	98.42	12	12
47291	-	-	5.70	0.2244	5.70	2.2441	57.00	3.6614	93.00	12	12
44071	-	1	-	0.2280	5.79	2.6250	66.67	3.8750	98.42	12	12
47293	-	-	5.80	0.2283	5.80	2.2441	57.00	3.6614	93.00	12	12
47294	-	-	5.90	0.2323	5.90	2.2441	57.00	3.6614	93.00	12	12
44171	-	A	-	0.2340	5.94	2.6250	66.67	3.8750	98.42	12	12
44015	15/64	-	-	0.2344	5.95	2.6250	66.67	3.8750	98.42	12	12
47295	-	-	6.00	0.2362	6.00	2.2441	57.00	3.6614	93.00	12	12
44172	-	B	-	0.2380	6.05	2.7500	69.85	4.0000	101.60	12	12
47296	-	-	6.10	0.2402	6.10	2.4803	63.00	3.9764	101.00	12	12
44173	-	C	-	0.2420	6.15	2.7500	69.85	4.0000	101.60	12	12
47297	-	-	6.20	0.2441	6.20	2.4803	63.00	3.9764	101.00	12	12
44174	-	D	-	0.2460	6.25	2.7500	69.85	4.0000	101.60	12	12
47299	-	-	6.30	0.2480	6.30	2.4803	63.00	3.9764	101.00	12	12
44016	1/4	E	-	0.2500	6.35	2.7500	69.85	4.0000	101.60	12	12
47300	-	-	6.40	0.2520	6.40	2.4803	63.00	3.9764	101.00	12	12
47301	-	-	6.50	0.2559	6.50	2.4803	63.00	3.9764	101.00	12	12
44176BP	-	F	-	0.2570	6.53	2.8750	73.02	4.1250	104.77	50	50
44176	-	F	-	0.2570	6.53	2.8750	73.02	4.1250	104.77	12	12
47302	-	-	6.60	0.2598	6.60	2.4803	63.00	3.9764	101.00	12	12
44177	-	G	-	0.2610	6.63	2.8750	73.02	4.1250	104.77	12	12
47303	-	-	6.70	0.2638	6.70	2.4803	63.00	3.9764	101.00	12	12
44017	17/64	-	-	0.2656	6.75	2.8750	73.02	4.1250	104.77	12	12
44178	-	H	-	0.2660	6.76	2.8750	73.02	4.1250	104.77	12	12
47305	-	-	6.80	0.2677	6.80	2.7165	69.00	4.2913	109.00	12	12
47306	-	-	6.90	0.2717	6.90	2.7165	69.00	4.2913	109.00	12	12
44179	-	I	-	0.2720	6.91	2.8750	73.02	4.1250	104.77	12	12
47307	-	-	7.00	0.2756	7.00	2.7165	69.00	4.2913	109.00	12	12
44180	-	J	-	0.2770	7.04	2.8750	73.02	4.1250	104.77	12	12
47308	-	-	7.10	0.2795	7.10	2.7165	69.00	4.2913	109.00	12	12
44181	-	K	-	0.2810	7.14	2.9375	74.61	4.2500	107.95	12	12
44018	9/32	-	-	0.2813	7.15	2.9375	74.61	4.2500	107.95	12	12
47309	-	-	7.20	0.2835	7.20	2.7165	69.00	4.2913	109.00	12	12
47311	-	-	7.30	0.2874	7.30	2.7165	69.00	4.2913	109.00	12	12
44182	-	L	-	0.2900	7.37	2.9375	74.61	4.2500	107.95	12	12
47312	-	-	7.40	0.2913	7.40	2.7165	69.00	4.2913	109.00	6	6
44183	-	M	-	0.2950	7.49	3.0625	77.79	4.3750	111.13	6	6
47313	-	-	7.50	0.2953	7.50	2.7165	69.00	4.2913	109.00	6	6
44019	19/64	-	-	0.2969	7.54	3.0625	77.79	4.3750	111.13	6	6
47314	-	-	7.60	0.2992	7.60	2.9528	75.00	4.6063	117.00	6	6
44184	-	N	-	0.3020	7.67	3.0625	77.79	4.3750	111.13	6	6
47315	-	-	7.70	0.3031	7.70	2.9528	75.00	4.6063	117.00	6	6
47317	-	-	7.80	0.3071	7.80	2.9528	75.00	4.6063	117.00	6	6
47318	-	-	7.90	0.3110	7.90	2.9528	75.00	4.6063	117.00	6	6
44020	5/16	-	-	0.3125	7.94	3.1875	80.96	4.5000	114.30	6	6
47319	-	-	8.00	0.3150	8.00	2.9528	75.00	4.6063	117.00	6	6
44185	-	O	-	0.3160	8.03	3.1875	80.96	4.5000	114.30	6	6
47320	-	-	8.10	0.3189	8.10	2.9528	75.00	4.6063	117.00	6	6
47321	-	-	8.20	0.3228	8.20	2.9528	75.00	4.6063	117.00	6	6
44186	-	P	-	0.3230	8.20	3.3125	84.14	4.6250	117.47	6	6
47323	-	-	8.30	0.3268	8.30	2.9528	75.00	4.6063	117.00	6	6
44021	21/64	-	-	0.3281	8.33	3.3125	84.14	4.6250	117.47	6	6
47324	-	-	8.40	0.3307	8.40	2.9528	75.00	4.6063	117.00	6	6
44187	-	Q	-	0.3320	8.43	3.4375	87.31	4.7500	120.65	6	6
47325	-	-	8.50	0.3346	8.50	2.9528	75.00	4.6063	117.00	6	6
47326	-	-	8.60	0.3386	8.60	3.1890	81.00	4.9213	125.00	6	6
44188	-	R	-	0.3390	8.61	3.4375	87.31	4.7500	120.65	6	6
47327	-	-	8.70	0.3425	8.70	3.1890	81.00	4.9213	125.00	6	6
44022	11/32	-	-	0.3438	8.73	3.4375	87.31	4.7500	120.65	6	6
47329	-	-	8.80	0.3465	8.80	3.1890	81.00	4.9213	125.00	6	6
44189	-	S	-	0.3480	8.84	3.5000	88.90	4.8750	123.82	6	6
47330	-	-	8.90	0.3504	8.90	3.1890	81.00	4.9213	125.00	6	6
47331	-	-	9.00	0.3543	9.00	3.1890	81.00	4.9213	125.00	6	6
44190	-	T	-	0.3580	9.09	3.5000	88.90	4.8750	123.82	6	6
47332	-	-	9.10	0.3583	9.10	3.1890	81.00	4.9213	125.00	6	6
44023	23/64	-	-	0.3594	9.13	3.5000	88.90	4.8750	123.82	6	6
47333	-	-	9.20	0.3622	9.20	3.1890	81.00	4.9213	125.00	6	6
47335	-	-	9.30	0.3661	9.30	3.1890	81.00	4.9213	125.00	6	6
44191	-	U	-	0.3680	9.35	3.6250	92.07	5.0000	127.00	6	6
47336	-	-	9.40	0.3701	9.40	3.1890	81.00	4.9213	125.00	6	6
47337	-	-	9.50	0.3740	9.50	3.1890	81.00	4.9213	125.00	6	6
44024	3/8	-	-	0.3750	9.53	3.6250	92.07	5.0000	127.00	6	6
44192	-	V	-	0.3770	9.58	3.6250	92.07	5.0000	127.00	6	6
47338	-	-	9.60	0.3780	9.60	3.4252	87.00	5.2362	133.00	6	6
47339	-	-	9.70	0.3819	9.70	3.4252	87.00	5.2362	133.00	6	6
47341	-	-	9.80	0.3858	9.80	3.4252	87.00	5.2362	133.00	6	6
44193	-	W	-	0.3860	9.80	3.7500	95.25	5.1250	130.17	6	6
47342	-	-	9.90	0.3898	9.90	3.4252	87.00	5.2362	133.00	6	6
44025	25/64	-	-	0.3906	9.92	3.7500	95.25	5.1250	130.17	6	6
47343	-	-	10.00	0.3937	10.00	3.4252	87.00	5.2362	133.00	6	6
44194	-	X	-	0.3970	10.08	3.7500	95.25	5.1250	130.17	6	6
47354	-	-	10.20	0.4016	10.20	3.4252	87.00	5.2362	133.00	6	6
44195	-	Y	-	0.4040	10.26	3.8750	98.42	5.2500	133.35	6	6
44026	13/32	-	-	0.4063	10.32	3.8750	98.42	5.2500	133.35	6	6
44196	-	Z	-	0.4130	10.49	3.8750	98.42	5.2500	133.35	6	6
47344	-	-	10.50	0.4134	10.50	3.4252	87.00	5.2362	133.00	6	6
44027	27/64	-	-	0.4219	10.72	3.9375	100.01	5.3750	136.53	6	6
47356	-	-	10.80	0.4252	10.80	3.7008	94.00	5.5905	142.00	6	6
47345	-	-	11.00	0.4331	11.00	3.7008	94.00	5.5905	142.00	6	6
44028	7/16	-	-	0.4375	11.11	4.0625	103.19	5.5000	139.70	6	6
47357	-	-	11.20	0.4409	11.20	3.7008	94.00	5.5905	142.00	6	6
47346	-	-	11.50	0.4528	11.50	3.7008	94.00	5.5905	142.00	6	6
44029	29/64	-	-	0.4531	11.51	4.1875	106.36	5.6250	142.88	6	6
47358	-	-	11.80	0.4646	11.80	3.7008	94.00	5.5905	142.00	6	6
44030	15/32	-	-	0.4688	11.91	4.3125	109.54	5.7500	146.05	6	6
47347	-	-	12.00	0.4724	12.00	3.9764	101.00	5.9449	151.00	6	6
47359	-	-	12.20	0.4803	12.20	3.9764	101.00	5.9449	151.00	6	6
44031	31/64	-	-	0.4844	12.30	4.3750	111.13	5.8750	149.22	6	6
47348	-	-	12.50	0.4921	12.50	3.9764	101.00	5.9449	151.00	6	6
44032	1/2	-	-	0.5000	12.70	4.5000	114.30	6.0000	152.40	6	6
47360	-	-	12.80	0.5039	12.80	3.9764	101.00	5.9449	151.00	1	1
47349	-	-	13.00	0.5118	13.00	3.9764	101.00	5.9449	151.00	1	1
44033	33/64	-	-	0.5156	13.10	4.8125	122.24	6.6250	168.27	1	1
47361	-	-	13.20	0.5197	13.20	3.9764	101.00	5.9449	151.00	1	1
44034	17/32	-	-	0.5313	13.50	4.8125	122.24	6.6250	168.27	1	1
47363	-	-	13.50	0.5315	13.50	4.2520	108.00	6.2992	160.00	1	1
47364	-	-	13.80	0.5433	13.80	4.2520	108.00	6.2992	160.00	1	1
44035	35/64	-	-	0.5469	13.89	4.8125	122.24	6.6250	168.27	1	1
47362	-	-	14.00	0.5512	14.00	4.2520	108.00	6.2992	160.00	1	1
47365	-	-	14.25	0.5610	14.25	4.4882	114.00	6.6535	169.00	1	1
44036	9/16	-	-	0.5625	14.29	4.8125	122.24	6.6250	168.27	1	1
47366	-	-	14.50	0.5709	14.50	4.4882	114.00	6.6535	169.00	1	1
44037	37/64	-	-	0.5781	14.68	4.8125	122.24	6.6250	168.27	1	1
47367	-	-	14.75	0.5807	14.75	4.4882	114.00	6.6535	169.00	1	1
47369	-	-	15.00	0.5906	15.00	4.4882	114.00	6.6535	169.00	1	1
44038	19/32	-	-	0.5938	15.08	5.1875	131.76	7.1250	180.97	1	1
47370	-	-	15.25	0.6004	15.25	4.7244	120.00	7.0079	178.00	1	1
44039	39/64	-	-	0.6094	15.48	5.1875	131.76	7.1250	180.97	1	1
47368	-	-	15.50	0.6102	15.50	4.7244	120.00	7.0079	178.00	1	1
47371	-	-	15.75	0.6201	15.75	4.7244	120.00	7.0079	178.00	1	1
44040	5/8	-	-	0.6250	15.88	5.1875	131.76	7.1250	180.97	1	1
47372	-	-	16.00	0.6299	16.00	4.7244	120.00	7.0079	178.00	1	1
47373	-	-	16.25	0.6398	16.25	4.9213	125.00	7.2441	184.00	1	1
44041	41/64	-	-	0.6406	16.27	5.1875	131.76	7.1250	180.97	1	1
47374	-	-	16.50	0.6496	16.50	4.9213	125.00	7.2441	184.00	1	1
44042	21/32	-	-	0.6563	16.67	5.1875	131.76	7.1250	180.97	1	1
47376	-	-	16.75	0.6594	16.75	4.9213	125.00	7.2441	184.00	1	1
47377	-	-	17.00	0.6693	17.00	4.9213	125.00	7.2441	184.00	1	1
44043	43/64	-	-	0.6719	17.07	5.6250	142.88	7.6250	193.67	1	1
47378	-	-	17.25	0.6791	17.25	5.1181	130.00	7.5197	191.00	1	1
44044	11/16	-	-	0.6875	17.46	5.6250	142.88	7.6250	193.67	1	1
47375	-	-	17.50	0.6890	17.50	5.1181	130.00	7.5197	191.00	1	1

118&#176; General Purpose Jobber Length Drill

General

Specifications

Shank

Options

Additional Information

118° General Purpose Jobber Length Drill
