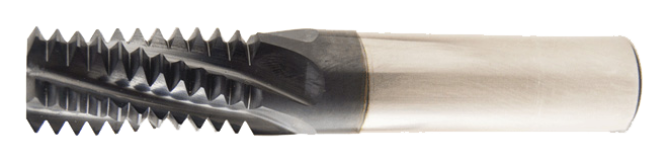

NPT Thread Mill

Add to Favorites

View Larger

General

Brand NameBassett
Style #TMNP

Specifications

Surface ConditionTiAlN
MaterialCarbide
Mill ConstructionNPT Solid

Shank

Shank ConfigurationStraight

Literature:

GFI SDS 02 - Carbide Product - December 2019.pdf

Warnings:

This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.p65warnings.ca.gov

Category: Thread Mills
Brand: Bassett

Options

SKU:	Thread Size	Dia (in)	Dia (mm)	Shank Dia (in)	Shank Dia (mm)	LOC (in)	LOC (mm)	OAL (in)	OAL (mm)	# Flutes	Pack Qty	Min Qty
B71050	1/16"-27 NPT / NPTF	0.2450	6.22	0.2500	6.35	0.4370	11.10	3.0000	76.20	3	1	1
B71052	1/4, 3/8-18 NPT / NPTF	0.3050	7.75	0.3750	9.52	0.6250	15.88	3.0000	76.20	4	1	1
B71051	1/8"-27 NPT / NPTF	0.3100	7.87	0.3125	7.94	0.4370	11.10	4.0000	101.60	4	1	1
B71055	1/2, 3/4-14 NPT / NPTF	0.4950	12.57	0.5000	12.70	0.8750	22.22	4.0000	101.60	4	1	1
B71056	1"-11.5 NPT / NPTF	0.6200	15.75	0.7500	19.05	1.1250	28.57	5.0000	127.00	5	1	1
